Gym Strength Equipment Pec Fly

Basic Info.

Model NO.	XMDM-002
Appliance	Community, Gymnasium
Material	Alloy
Transport Package	Wooden Box
Trademark	MBH
Origin	China
HS Code	95069119
Production Capacity	1500/Month

Product Description

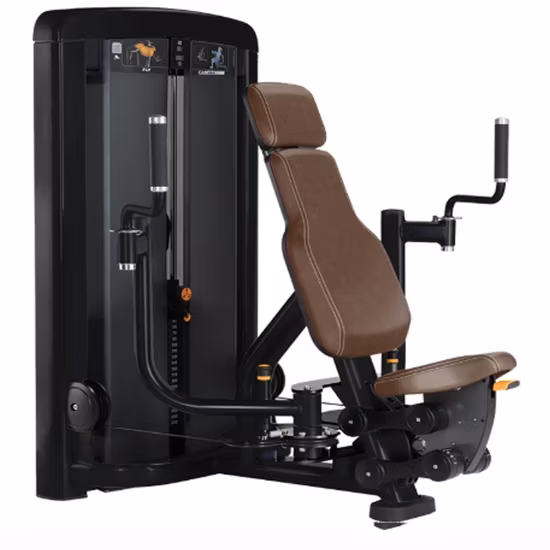

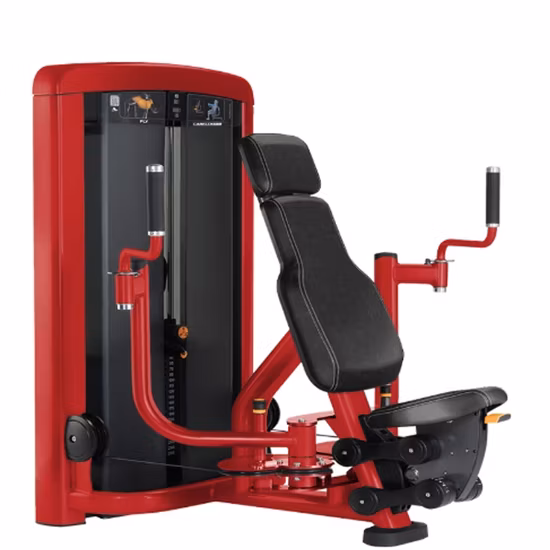

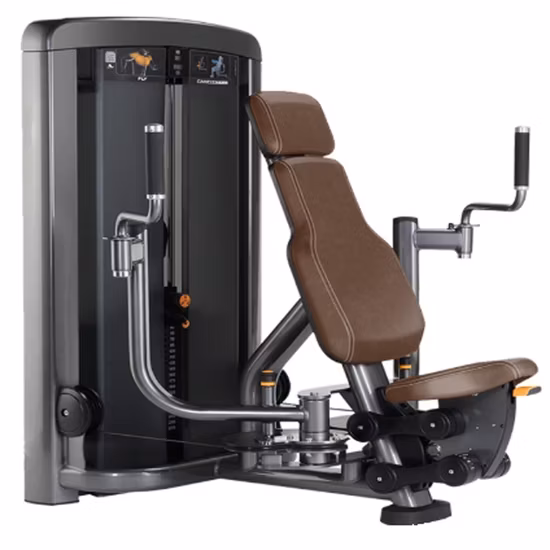

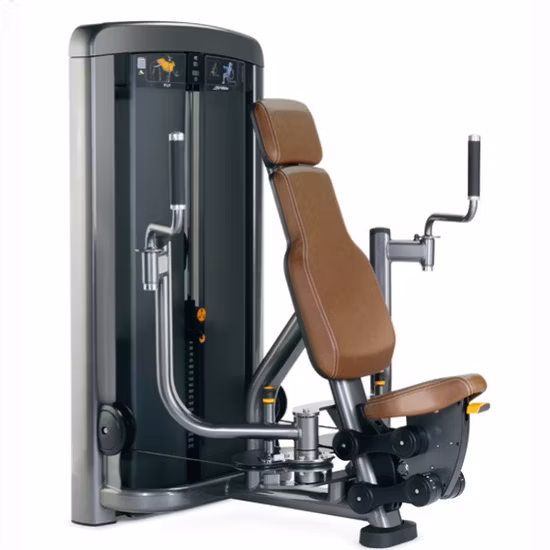

Gym Strength Equipment Pec Fly

Features
Frame	Tube, Frame: Flat oval, 501202.5TTube, Connect Assembly: Flat oval, 501202.5TTube, Press Arm: Round, Ф603.0; Round, Ф503.0; Flat oval, 40803.0TTube, Weight Cage: Rectangular, 501002.5TThese tubes are well combined to give the unit elegant appearance and powerful feature.
Cushion	The cushion is made of PU with once forming technology. Its hardness is designed according to the principles of ergonomics and controlled to be around HBS-65±5, it assures that it's suitable for almost all users. The leather which wraps it does not peel off or fade after getting rubbed 8000 times with a 500g weight. Its color can be Carmine red, Chinese red, Graphite black, etc. The cushion and leather are sewed with double stitch (yellow threads).
Seat adjustment system	Iron made adjustment system with surface processed with electrostatic coating and gas spring (200N) make it more convenient and faster to adjust the seat.
Cam	It's made of high-strength PE with CNC lathe technology. PE has a high strength, excellent corrosion-resistance, solidity and durability, and does not get distorted or deformed.
Counter weight	It's made of cast iron and wrapped with PU which does not only prevent rustiness but also bring elegance and high end.
Footrest	PU foam and steel kneel inside the pedal bring enough strength and special user experience.
Knob	Oversize; easier to be fastened; ABS+PC; solid and durable.
Guide rail	It's made of alloy steel (45#, D=40mm) with high temperature treatment, grinding, and hard chrome plating processes. It has excellent wear-ability, corrosion-resistance and ductility; it does not bend or break.
Shroud	The shroud is made of ABS with one step injection molding technology; its surface is processed with twice coating and baking varnish used in automobile manufacture which helps to retain beauty and lustre permanently.
Trim, Weight Cage	It's made of ABS with one step injection molding technology; its surface is processed with baking varnish used in automobile manufacture which retains the beauty and lustre permanently.
Pulley	The pulley (d=105mm) is made of all aluminum with casting technology; CNC technology is applied to locate bearings precisely. The pulley surface is processed with black paint and electrostatic coating technology.
Handgrip	Aluminum handgrip (optional); plastic handgrip (optional).
Bearing	C&U®bearing (The top brand in China)
Weight stack	Alloy steel (20#); flat and smooth surface, without pits; thin but heavy.
Guide rod	It's made of solid alloy steel; chrome plating used for the surface and multiple procedures assure that it produces little noise but brings smooth transmission, and has super wear-resistance and no deformation, also the lustre lasts for longer time. It does not get rusty after 24h of salt atmosphere test!
Selector pin	Handle: aluminum alloy, processed with color plating.Pin: stainless steel (304#)
Steel cable	Imported steel cableMax load: 1000kgPass a 250,000 round endurance test
Exercise instruction sticker	PVC sticker; 3M tape with high viscosity, dampproof and corrosion-resistant.
Foot pad	It's made of PVC with once forming technology.
Graduation	Material: stainless steel (thickness: 2mm); Process: laser cutting; laser marking
Counter	Yes (with buzzer)
Readouts	Frequency/Time,
Power Supply	AA battery
Water bottle holder	Yes
Towel rack	No
Bearing cap	Material: Die casting aluminum
Screw	Material: stainless steel screw (A2-70); class 12.9 alloy steel (for some parts).
Transport wheel	No
Configuration
Powdercoat Color	Brilliant black (default) /Sliver Grey (optional)/Matt Black (optional)
Shroud Color	Grey black+blue (internal trim)
Weight Plates Color	Black (default)
Upholstery Color	Graphite black (default; double stitch; red threads)/Carmine red (optional)/Chinese red (optional)
Logo	Material: ABSSurface treatment: chrome platingThe reverse side: 3M tape with high viscosity
Meas.&Weight
Maximum User Weight	150kg
Unit Dimensions	As per product catalogue.
N.W.	As per product catalogue.
G.W.	As per product catalogue.
Weight Stack (default)	As per product catalogue.
Weight Stack (maximum)	As per product catalogue.
Packing	Carton/wooden box; disassembled.(Equipment with big volume must be put in wooden box.)
